Eco Pod

Registered Design No: 4042078

Comfortable off-grid dwelling at an affordable price

The Eco Pod has been designed to provide a comfortable living environment for one person throughout all the seasons of a British climate. We are currently building the prototype in preparation for making it available as a product.

The main driver behind this project is the fact that Human Beings [as a species] are living beyond the means of this planet. Our unsustainable lifestyles are causing all sorts of problems and we urgently need to figure out how to live in harmony with our only home. Housing is responsible for a large part of our resource consumption and so I have set out to illustrate that, with existing technology, we can produce a dwelling that meets the needs of one Human Being in a sustainable way. Once that concept has been proven for one person (via this introductory vehicle), it is then simply a matter of multiplication for it to become a reality for all.

The core feature is that it is essentially an 'off-grid' dwelling, in that the majority of the occupant's domestic needs are met without requiring a connection to any 'mains' i.e. services such as water, sewage, electricity and gas. This core feature ensures that the financial costs of both installing and maintaining the Eco Pod are minimal. It also ensures that the inherent environmental costs of using grid based services are avoided i.e. carbon emissions from electricity generation (even if you are on a 'Green' tarrif). Furthermore, it gives you control over how the water you consume and the waste you produce is treated i.e. without employing harmful chemicals. The Eco Pod incorporates a carefully considered combination of 'green' technologies to deliver all the normal household services with the lowest possible environmental consequences; In other words, it has an ultra-low 'footprint'.

Water is harvested from rainfall and rendered 'potable' (safe for drinking [and cooking]) via in-line UV[C] light treatment plus activated carbon filtration. Heat and power come from the roof mounted solar panels. It's super insulated (300mm thick) and employs Passivhaus 'technology' (i.e. controlled level of airtightness with heat recovery ventilation) so that the space heating requirement is minimal; So much so that it does not require the use of a log burner, even in the depths of winter.

A key feature of the design is the connectors; As well as facilitating a strong connection of the structurally graded timber frame (C16), the hole in the centre allows for the organised passing of flues, ducts, pipes and wires through the building envelope ... similar to the I/O ports on a computer.

All the steelwork has been prototyped with the enthusiastic assistance of a local specialist fabricator, Progress Fabrications. Producing the 10-way connectors shown above has involved laser cutting and precision bending using a CNC brake press.


Stage floor

The floor area is 10 m2 (a little over 100 square feet) and is raised off the ground by around 2 feet; This 'stage' creates a space below to house the water storage tanks; As these can potentially weigh a number of tonnes (i.e. when full), it makes sense to have them sat directly on the ground.

The base is designed to cope with sitting on uneven ground and can be easily levelled by adjusting the screw base jacks (standard scaffolding units) incorporated in the outer legs.

The way in which the Eco Pod is made has also received careful consideration. Firstly, the structure has been designed to be strong enough to cope with anything the British weather might throw at it, in addition to bearing the weight of its roof mounted solar panels. Secondly, the materials used in its construction are, as far as possible, from renewable sources. Thirdly, all the components bolt together which, combined with the non-permanent pad 'footings', means that it qualifies (in UK planning law) as a 'temporary structure'.

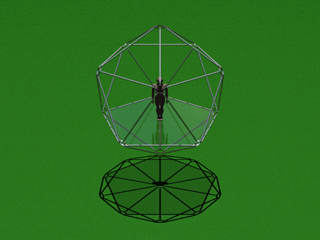

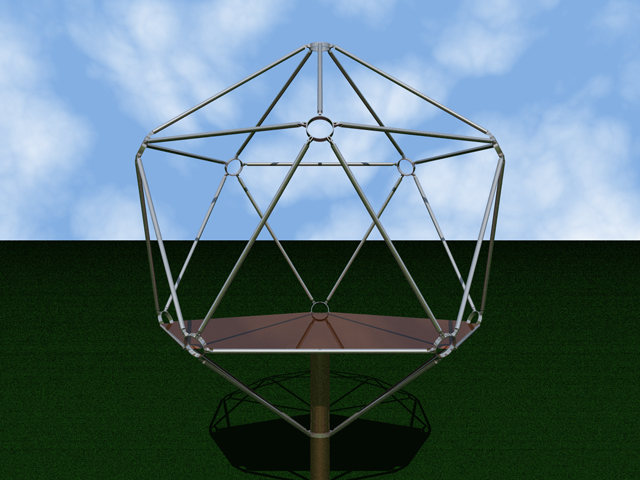

The main frame is based on the geometry of an icosahedron, the fifth platonic solid, which is made up entirely of equilateral triangles. This shape is intrinsically very strong and does not require any additional cross-bracing or anti-racking measures i.e. structural boarding. All timbers used in the construction of the frame are structurally graded at C16.

Here's the base platform assembled (photo taken at Lifeways):

Floor frame real

And here's the core frame assembled on top:

Core frame
